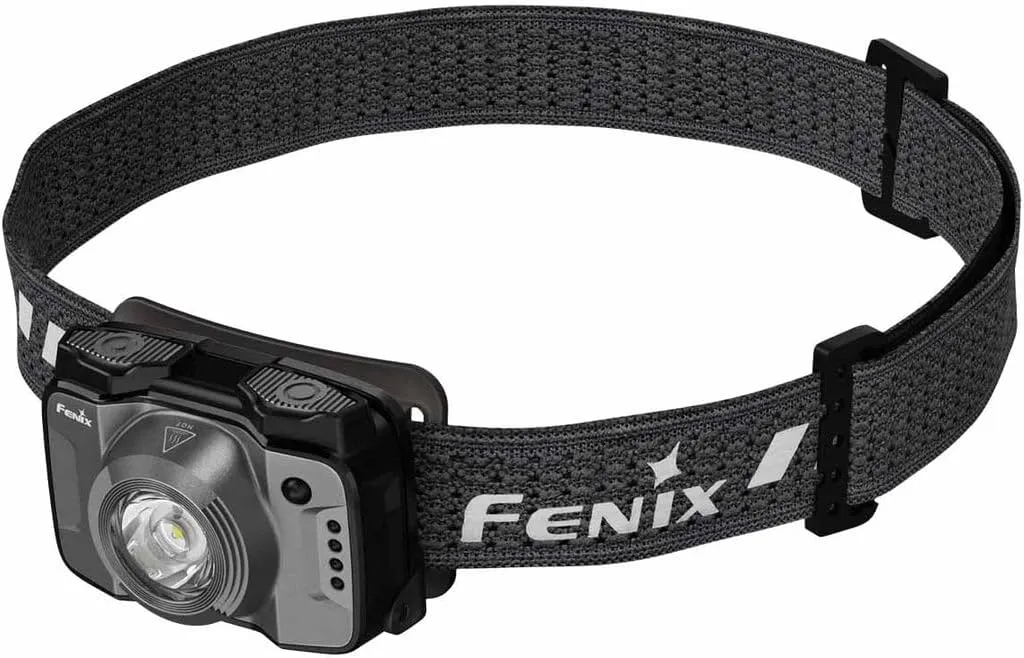

The Fenix HL12R V2.0 is a rechargeable headlamp designed for users who need light weight and reliable lighting. At only 2.5 grams including the battery and headband, the lightest of Fenix headlamps. Up to 500 lumens and a maximum illumination distance of 125 meters and is about twice the reach of the previous model. Compatible with USB Type-C charging, easy to recharge anywhere. The thick headband provides a comfortable wearing experience even after long hours of use, and has IP66 dustproof and splash-proof performance to withstand sudden rain. With 6 lighting modes, including white and red, this headlamp is perfect for beginners, mountain climbing, running, and outdoor activities.

■ Specifications
Maximum luminous flux: 500 lumens
Maximum Irradiation Distance: 125 meters
Maximum lighting time: 112 hours
Lighting modes: white light (4 levels), red light up, red flash.
LED Type: Luminus SST20 White LED x 1, 2835 Red LED x 1
Lens Material: Polycarbonate
Color Temperature: Approx. 6,000 - 6,500 K
Size (W x H x D): 2.2 x 1.6 x 1.2 inches (56 x 40 x 31.9 mm).
Weight: Approx. 2.5 oz (72.5 g) (including battery and headband)
Battery: Built-in 950mAh rechargeable battery
Accessories: USB Type-C charging cable
Warranty: Limited Lifetime Warranty by Fenix Lighting USA

■ Other Features
Equipped with 2 LED types of white and red (50,000 hours lifespan).
The red light is perfect for reading and holding your eye at night.
Dual top switch for intuitive operation.
Electronic lock function to prevent accidental lighting
Supports fast charging via USB Type-C port.
The front case is made of high quality aluminum alloy for excellent durability and heat dissipation.

Q1: What is the LEDs used for HL12R V2.0? Does Fenix provide LED replacement services?
→ HL12R V2.0 uses one Luminus SST20 white LED and one 2835 red LED with a lifespan of 50,000 hours. At present, Fenix does not offer LED replacement services, and is not recommended for users to replace LEDs themselves as they may adversely affect their performance and may cause product damage.

Q2: What is the working voltage of HL12R V2.0?
→ Operating voltage is 2.8-4.5V. The limited operating voltage range is 2.8-6.0V.

Q3: How much color temperature is HL12R V2.0?
→ 6000-6500K

Q4: Is HL12R V2.0 rechargeable? How long is the charging time?
→ Yes. The HL12R V2.0 can charge the built-in 950mAh battery with a USB Type-C charging port. When charging, the charging status will be displayed with a flashing indicator from bottom to up. Normally, if you use a charging adapter that is greater than 5V/1A, it will take about 2.5 hours from fully discharged state to full charge.

Q5: Can I use HL12R V2.0 in bad weather such as rainy or sandstorm?
→ HL12R V2.0 has IP66 protection and can be used in all weather conditions. Withstands heavy rain and splashes of water, providing full protection from dust and foreign objects.

Q6: Why HL12R V2.0 and its battery indicator flash?
→ When the battery is insufficient, the light and its indicator may flicker or stop light up. Please charge the battery. If you do not improve this way, please contact the reseller.

Q7: Why HL12R V2.0 will lose output after a while, and the high output mode cannot be selected?
→ When the voltage level falls below the preset value, the headlamp is programmed to automatically downshift to low brightness. When the lowest output is reached, the indicator flashes to encourage the user to charge the battery in a timely manner.

Q8: How to prevent HL12R V2.0 malfunction?
→ Hold 2 switches at the same time for 3 seconds, the headlamp can be locked or unlocked to prevent malfunction.

• Product Dimensions ‏ : ‎ 0.91 x 2.2 x 1.26 inches; 3.53 ounces
• Batteries ‏ : ‎ 1 Nonstandard Battery batteries required. (included)
• Date First Available ‏ : ‎ April 17, 2025
• Manufacturer ‏ : ‎ FENIX
