- FEATURES Sturdy Metal Chassis || PRO DSP FX onboard with 16 presets || Stereo Recording and Playback via USB port || Balanced main output audio path from input to output || 4 single control compressors || Mono channels provided with 3-band EQ. 2-band EQ on stereo channels. || Robust, compact and attractive design. || Designed and Engineered in Italy || Internal Universal Power Supply ||
- TECHNICAL SPECIFICATIONS Electronic specifications Frequency Response: 20 Hz ÷ 20 kHz || THD N, 20dB gain, 0dBu out <0,02% A-Weighted || Processing Dynamic Range:> 85dB || Outputs specifications Main Out Level: 28 dBu || Aux Out Level: 28 dBu || Group Out Level: 28 dBu || Phones Out impedance (ohm): 150 ohm ||
- PHYSICAL SPECIFICATIONS Cabinet/Case Material: Metal || Color: Black || SIZE :: || Height: 97 mm / 3.82 inches || Width: 373 mm / 14.69 inches || Depth: 355 mm / 13.98 inches || Weight: 4.5 kg / 9.92 lbs || SHIPPING INFORMATION :: || Package Height: 140 mm / 5.51 inches || Package Width: 400 mm / 15.75 inches || Package Depth: 425 mm / 16.73 inches || Package Weight: 5.5 kg / 12.13 lbs ||
- RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team.
- Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

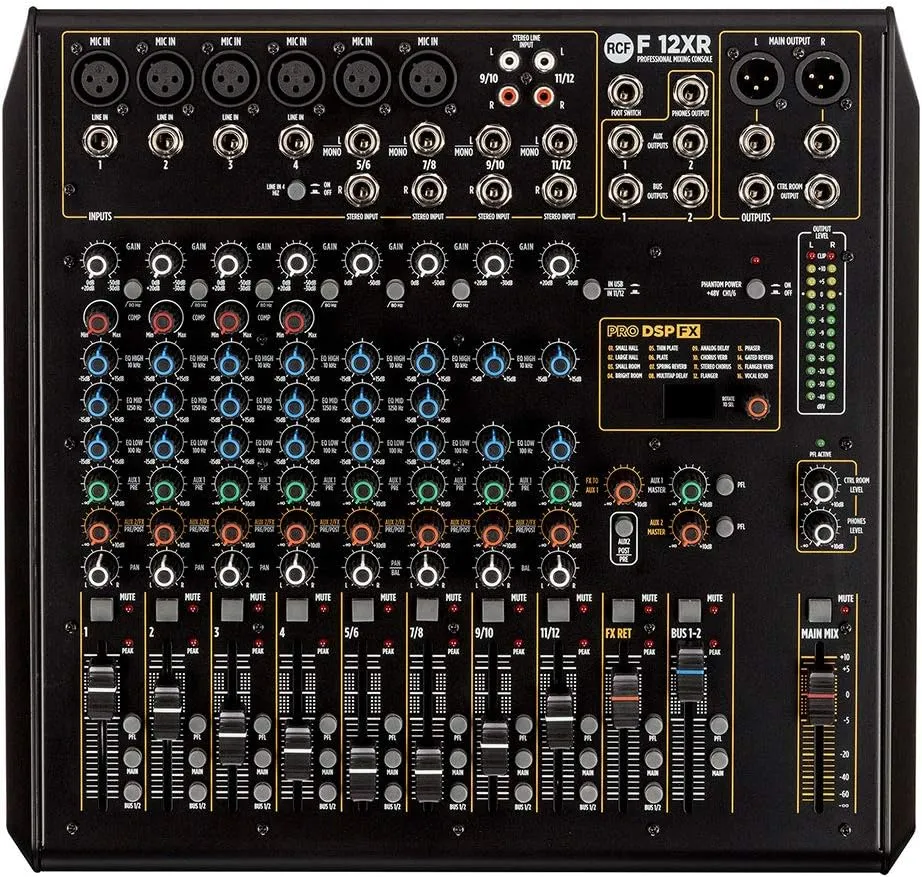

RCF 12CH MIXER WITH MULTI EFFECTS
