- Specially designed for 1/18 RC Crawler car with excellent start-up,acceleration and linearity features.
- Speed close-loop control to the power system of rock crawle, the lowspeed torque ls very strong, adjustable Drag Brake (Up to 200%),Enhanced climbing and speed control. Improved efficiency and reduced noise. Twice the braking power of standard brushless systems, ensuring superior downhill control.
- Powerful Low-Speed Torque & Smooth Operation: Intelligenttorque output &speed closed-loop control for easy control, delivering strong torque even at extremely low speeds for smooth and responsive driving.
- Multiple protection features: Low voltage cut-offprotection for lithiumor nickel battery/Over-heat protection /Throttle signal loss protection /Motor blocked protection.The strong resistant current capability, excellent heat dissipation.
- Built-in switch-mode BEC 5V/500mA for usage with high torque andhigh voltage servos. Note: The BEC supports up to 8.4V output for low-current applications only (e.g., powering receivers or sensors). For high-current servos, we recommend using 6V–7.4V for reliable and safe operation.

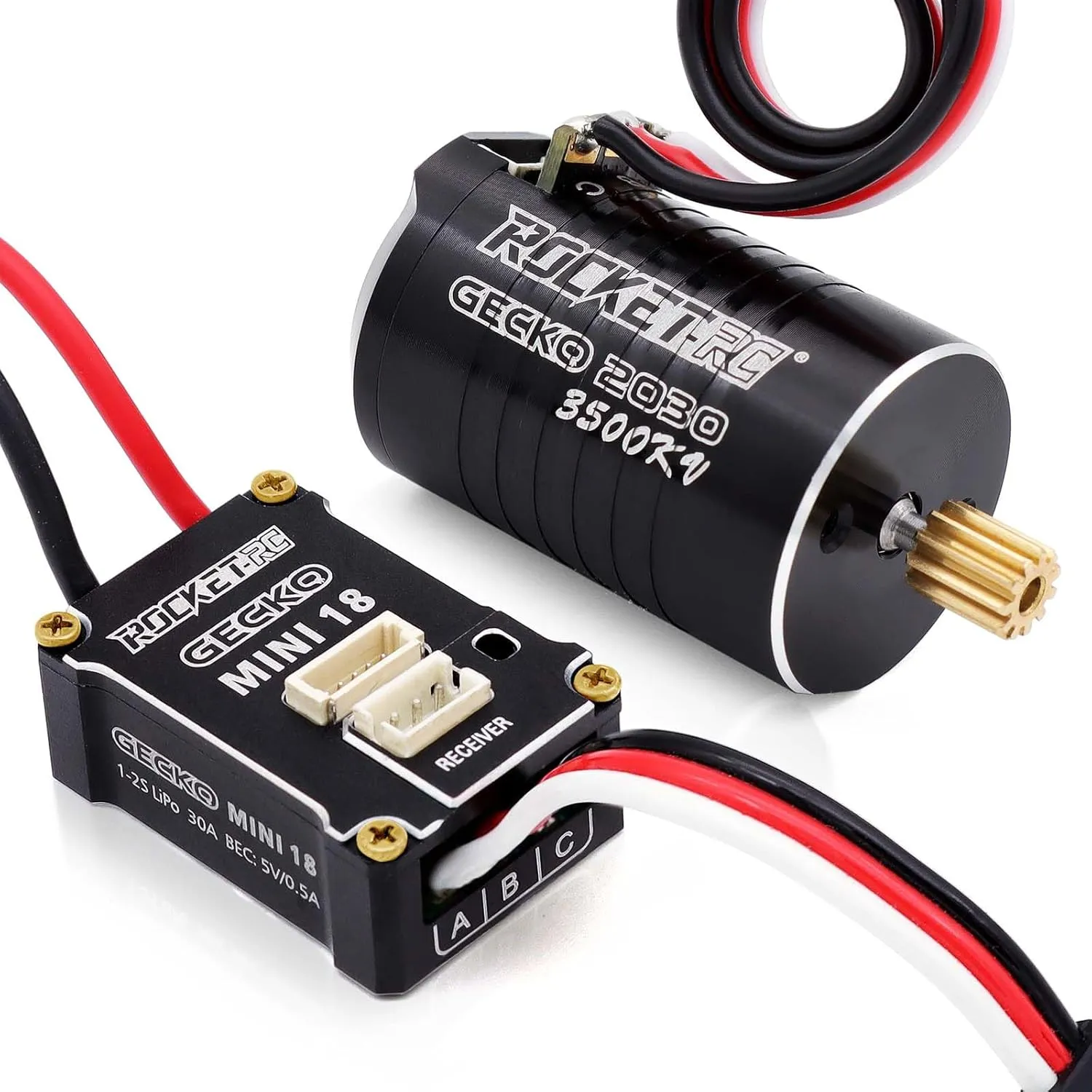

Surpass Hobby GECKO 2030 Sesored Brushless motor and ESC Combo for TRX4M 1/18 mini Crawler Upgrade
Features:
Comprehensive Protection System
Low Voltage Protection – Prevents over-discharge.
Overheat Protection – Reduces power if overheating occurs.
Overvoltage Protection – Limits excessive voltage input.
Overcurrent Protection – Prevents damage from high current.
Phase Loss Protection – Shuts down ESC if a phase wire disconnects.
Throttle Signal Loss Protection – Stops runaway scenarios.
Motor Disconnection Protection – Alerts and limits power if motor communication is lost.
ESC Specifications:
ESC Type: Rocket RC 30A Brushless ESC
Continuous/Peak Current: 30A / 80A
Supported Motors: Only compatible with Brushless Sensored 180 Motor
Scale Compatibility: ≤1/18 scale vehicles
Battery Support: 1-2S LiPo; 3-6S NiMH
BEC Output: BEC 5V/500mA
Size: 17.9mm×26mm×10.4mm
Weight: 9.5g
MOTOR Specifications:
Motor KV: 3500KV
Motor Type: Brushless Sensored 2030 Motor
Max Watts：120W
Max Voltage:8.4V
Max Amps:10A
Rotor Poles: 2S
Size: 20mm×31mm×20.5mm
Weight: 35g
- Package Dimensions : 3.35 x 2.17 x 1.34 inches; 3.84 ounces
- Date First Available : September 10, 2023
- Manufacturer : SHENZHEN SURPASS TECH CO.,LTD
- Country of Origin : China
